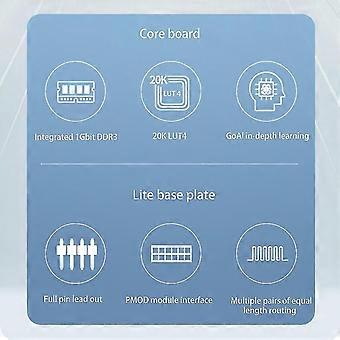

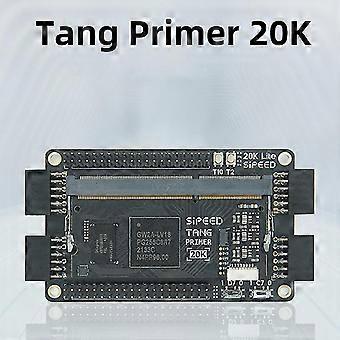

Features:brand new and high qualityTang Primer 20K core board uses GW2A-LV18PG-256C817 designed by GOWIN Semiconductor as the-main chipIt contains rich internal resources, such as high-performance -DSP, high speed LVDS interace and BSRAM memory resources.On board peripheral components such as DDR chip and power chips help users use this core board quickly develop and verify- projects.Suitable for high-speed and low cost situations.It includes a core board and a Lite- Ext-board. The Lite- ext-board has out almost all IO- ports to Pin headers and PMOD interfaces,by which uses can easily connect other peripheral modules or circuits for secondary development.Tang Primer 20K Dock ext-board equippedwith a wealth of peripheral resources, such as onboard use-JTAG&UART programmer, Ethernet and network- connector port, USB2.0 PHY HDMI-TX connector, Audio-output and headphone connector, RGB screen connector, camera connector.Package Includes:1 Set x Tang Primer 20K Core BoardSpecifications:Logical Unit: 20736Flip-Flop:15552Shadow-SRAM S-SRAM bit: 41472DSP-: Support 9x9 18x18 36x36bits Multiplier and 54 bit-accumulator18x18 Multiplier: 48SPI Flash: 32M-bitDisplay interface: SPI Screen interface connectorConnector: TF-card slot, SPI screen connector 8P 1.0mm IO-Pad JTAG lead outDRAM: Onboard 128MB DDR3 Chipnote:Avoid using JTAG MODE DONE these pins, if you must use this pins, please check:UG206-1.8_GW2A(R) Series FPGA Product Schematic instruction Manual.pdf-for more information.Please pay attention to avoid static electricity hitting the PCBA; please discharge the static electricity from the hands before touching- the PCBA.
