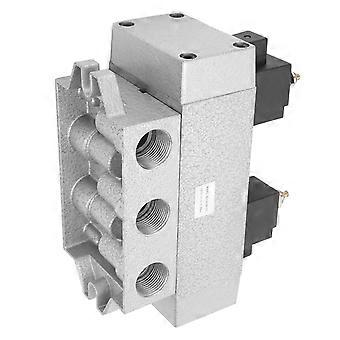

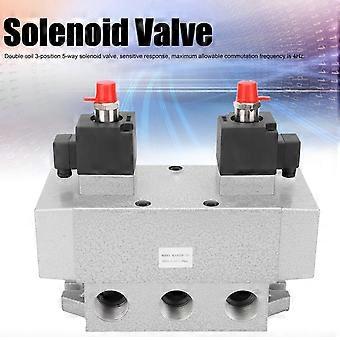

Feature: 1. Double coil 3‑position 5‑way solenoid valve, sensitive response, maximum allowable commutation frequency is 4Hz. 2. Adopts spacer type slide valve structure, which is very reliable in performance. 3. Specially designed with automatic compensation function for seal wear in the structural design. 4. The air solenoid valve has a dual control solenoid valve, sliding column structure, has good sealing and responsiveness. 5. The discharge flow rate of 250cm³/min can meet the needs of large flow media passing. 6. Compact structure, pipe‑connecting structure on base plate, makes installation and maintenance work more convenient. Specification: Item Type: 3 Position 5 Way Solenoid Valve Material: Aluminium AlloyModel: K35D2H-25 Interface Diameter: G1in Pressure: 0.15-0.8 Mpa Discharge Flow Rate: 250cm³/Min Reversing Time: ≤0.12s Maximum Allowable Commutation Frequency: 4Hz Environmental Temperature: -5--50℃ Medium Temperature: -5--50℃ S Value Of Circulation Capacity: 190mm² Life (Thousand Times) ≥1500How to Use:1. Manual operation can be used during debugging or power failure.2. The inside and outside of the pipe must be cleaned during installation, and then remove dust cap.3. If it has been stored for a long time or used for a long time or is not responsive, please disassemble and wash or add some lubricant.. Package List: 1 x Valve 1 x Description Note: 1. Manual operation can be used during debugging or power failure.2. The inside and outside of the pipe must be cleaned during installation, and then remove dust cap.3. If it has been stored for a long time or used for a long time or is not responsive, please disassemble and wash or add some lubricant.
