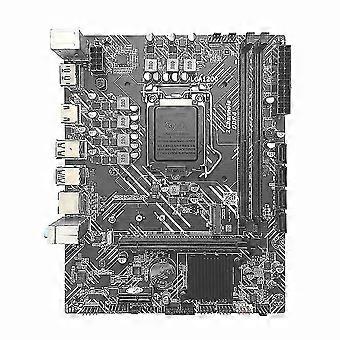

H510 is a high-performance, embedded computer motherboard based on the H510 high-speed chipset; Onboard LGA1200 pin, supports 10th/11th generation processors. Using For H510 chipset. Support 2*DDR4 RAM, single maximum support 32GB, frequency support 2133/2400/2800Mhz, support memory overclocking. Integrated 1 REALTEK 8111H Gigabit LAN. Supports 1 pin Using 1 RealtelALC 6-channel high-definition audio. Memory: Support 2*DDR4 memory, frequency support 2133/2400/2800Mhz, maximum support 32GB : 4*SATA3.0 interface, 1*M.2 interface, support SATA/NVME mode (automatic switching) Support 6 USB2.0 ports, 2 USB3.2 ports, 2 USB3.0 ports CPU PIN: LGA1200 Chipset: For H510 Chipset USB interface: 2*USB2.0, 2*USB3.2 Keyboard/Mouse: Support 1*PS/2 keyboard and mouse interface AUDIO: 1*F_AUDIO standard audio 3 in1 high fidelity audio interface Expansion bus: 1* pin 1*PCIE_16X interface 1*PCIE_1X interface Display interface: 1*-compatible 1*DP 1*PCIE_16X graphics card display Network chip: 1*REALTEK 8111H Gigabit LAN, support LAN , PXE function 2*F_USB2.0 pins (expandable 4 USB2.0) 1*USB3.0 pin can be extended to 2 USB3.0) 1*F_AUDIO audio front pin 1*J_SPK buzzer pin 1*JCMOS initial BIOS pin 1*CPU_FAN processor fan pin 2*CSYSFAN chassis fan pin Power Type: 24pinATXPWR 1*8pin_ATXCPU Different batches, the appearance and color of the product, and the style of the bottom plate may be different, which does not affect the use, understand, Note: Random color, ' accept the specified color. size:170mm x 215mm : PCB colour: black Package Contents: 1 x Motherboard 1 x SATA Cable(Random color and appearance) 1 x Switch Cable(Random color and appearance) 1 x Baffle(Random color and appearance) 1 x Thermal Pad(Random color and appearance) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
