3pcs 300w 20a Cc Cv Buck Converter Module Constant Current Led Driver Power Voltage Module

12 290,00 Ft
+ 2 599,00 Ft szállítási költség

3pcs 300w 20a Cc Cv Buck Converter Module Constant Current Led Driver Power Voltage Module

Értékesítő:

3pcs 300w 20a Cc Cv Buck Converter Module Constant Current Led Driver Power Voltage Module

Javasolt fogyasztói ár: 17 090,00 Ft
Ár: 12 290,00 Ft
Megtakarítás: 4 800,00 Ft (28%)
Értékesítő:
12 290,00 Ft
+ 2 599,00 Ft szállítási költség

Készleten

A következő fizetési módokat fogadjuk el

Leírás

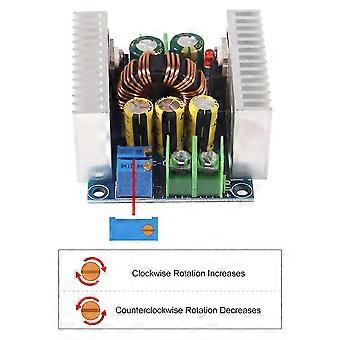

Output current adjustment method:Adjust the CV potentiometer and set the output voltage to the voltage value you need according to your load requirements. Set the CC potentiometer counterclockwise for about 30 turns (that is, set the output current to be small), connect the LED, and adjust the CC potentiometer to the current you need. For battery charging, after the battery is fully discharged, connect it to the output, and adjust the CC to the current you need. The more, the smaller the charging current.)Module properties: synchronous rectification, non-isolated buck, constant current and constant voltage module, CC CV charging moduleScope of application: high-power LED constant current drive, lithium battery charging (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, Ni-Cd Ni-MH battery (battery pack) charging, solar panels, wind turbinesOutput voltage: continuously adjustable (1.2-35VDC) for a long time below 32V (suitable for applications where the input voltage is higher than the output voltage and cannot be boosted)Input voltage: 6-40VDCOutput current: maximum 20A, within 15A for a long time (please add a fan to dissipate heat if the temperature of the power tube exceeds 65 degrees, and use derating for high voltage output)Current limiting range: 0.2-20A (adjustment) If the module exceeds 65 degrees, please add a fan.Low dropout: 3VWorking frequency: 150KHZConversion efficiency: about 96% higher, the efficiency is related to the pressure difference and the use environmentOutput ripple: about 50mV ripple (no noise) 20M bandwidth (for reference only) input 24V measuredOperating temperature: -10 to +75) (Please pay attention to the temperature of the power tube in actual use, if the temperature is too high, please strengthen the heat dissipation or derate the use)Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)Output short-circuit protection: yes (instantaneous protection) constant current (currently set constant current value cannot be short-circuited for a long time)Input reverse polarity protection: none,Output anti-backflow: none, for self-charged or inductive loads, an external 2-pole tube is required Wiring method: terminal blockModule size: 60x53x30MMColour: blueMaterial: PCB, metalPackage Contents:3 * 20A 300W Buck ConverterOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
  • Fruugo azonosító: 139815901-295460755
  • EAN: 784455484010

Termékbiztonsági információk

Kérjük, olvassa el a termékre vonatkozó biztonsági információkat az alábbiakban

Az alábbi információkat a terméket értékesítő független, harmadik fél kiskereskedő biztosítja.

Termékbiztonsági címkék

CE Mark
Biztonsági figyelmeztetések: Please make sure your children use this product under adult supervision to ensure their safety.
Hozzávalók: Mixed materials 100%
