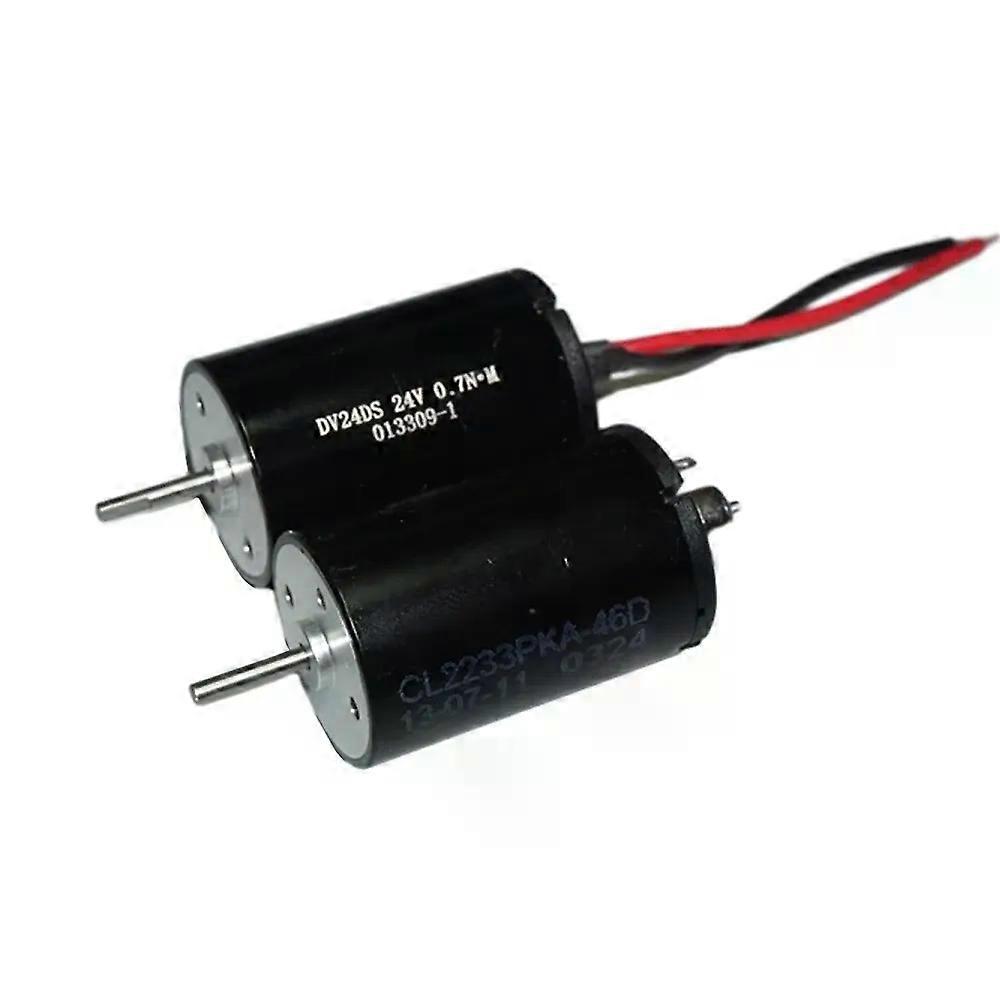

22mm Strong Magnetic Coreless Motor Large Torque Quiet Motor DC 12V-24V 2233 Long Axis Hollow Cup Motor 2233 hollow cup motor, originally equipped with planetary deceleration motor, 22mm large diameter hollow cup motor, neodymium strong magnetic stator, low speed and high torque silent hollow cup motor, there are two specifications at present, one with welded wire tail without tail shaft and magnetic ring, the other is without welded wire tail shaft and detection magnetic ring, the measured motor speed parameter data are the same. Choose which one you need. Hollow cup motor is generally better than the same specification motor energy saving efficiency and response, the motor no-load current is very small, is a high efficiency high response high-end motor, the minimum voltage of 0.2V can be started, pay attention to the tail with strong magnetic ring motor magnetic suction interference, to remove the low voltage low speed start effect like video. Specifications: Voltage 12V: no load current 3mA, no load speed 2250 RPM, locked current 0.35A Voltage 24V: no-load current 5mA, no-load speed 4600 RPM, locked current 0.65A The motor weighs about 60 grams each Note : 1.Due to the light and screen difference, the item's color may be slightly different from the pictures. 2.Please allow 1mm-1cm differences due to manual measurement. Package includes: 1x Coreless Motor _x000D_
