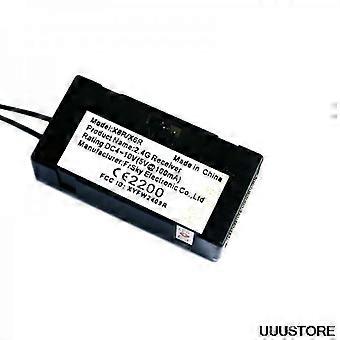

FrSky X6R 2.4G 16CH SBUS Receiver PCB Antenna Smart Port Data Return for Taranis X9D Jumper T16 T18 Radiomaster TX16S RC Drone FrSky's X6R receiver features 16 channels (6 normal PWM outputs and all 16 channels on the dedicated Sbus output). Plus the exciting new Smart Port and a traditional A2 port on the bottom. Pull the jumper and connect an FBVS for basic external voltage monitoring. Smaller than the X8R, but still packing 16 channels and the new Smart Port that supports the new huble digital sensors! Or, connect the new vario, and then connect the old hub to use existing analog sensors. Features With external analog telemetry port(AD1), When pins of A1 and X (Middle Pin) are connected by the jumper, A1 will change from External Analog Telemetry Port to Internal Built-in battery voltage sensor. More number of channels: 1~6ch from conventional channel outputs, 1~16ch from SBUS port With RSSI PWM output (0~3.3V) on board Smart Port enabled, realizing two-way full duplex transmiion. Specifications Dimension: 47x23x14mm (L x W x H) Weight: 16.7g Antenna: 150mm Coaxial Antenna with packing Number of Channels: 16CH (1~6ch from conventional channel outputs, 1~16ch from SBUS port) With RSSI output on board: PWM voltage output (0~3.3V) Operating Voltage Range: 4.0~10V Operating Current: 100mA@5V Operating Range: full range (>1.5km) Firmware Upgradeable Compatibility: FrSky DFT/DJT/DHT/DHT-U in D_mode; FrSky Taranis X9D/XJT in D8 mode; FrSky Taranis X9D/XJT in D16 mode Compatibility All 16 channels requires the FrSky Taranis, or the XJT module bound in D16 mode. For 8 channels in D8 Mode you can use the FrSky Taranis or XJT, DJT, DFT, DHT and DHT-U modules. Smart Port (S. Port) is a signal wire full duplex digital transmiion interface developed by FrSky Electronic Co., Ltd. All products enabled with Smart Port (including XJT module, X6R and X8R receiver, new hub-le sensors, new Smart Dashboard, etc), serial port user data and other user input/output devices can be connected without limitations for numbers or sequences at a high transmiion speed. Package Included: Frsky X6R receiverOptional number
